What Is Payment Gateway Testing? Types, Process, and Example Test Case

Today, businesses across eCommerce, fintech, travel, healthcare, and education rely on them to accept digital payments, support multiple payment methods, and deliver a smooth checkout experience for their customers.

The global market for payment gateways is expanding, and we can expect it to reach $245.71 billion by 2033 from $48.17 billion in 2025.

However, with growing adoption, businesses need to be aware of the risks that come with processing digital transactions at scale. Issues like payment failures or duplicate charges can significantly affect user experience.

A single glitch, and you’ve lost a sale and a potential customer, which is why testing payment gateways is essential.

In this blog, we’ll learn what payment gateway testing is, its types, testing methods, challenges, best practices, and how to validate payment systems effectively.

Build trust into every transaction with TestGrid’s end-to-end automation testing. Request a free trial.

TL;DR

• Payment gateway testing evaluates the correctness, stability, and behavior of payment processing systems before they are released to end users
• The different types of payment gateways are hosted, self-hosted, API-hosted, and local bank integration payment gateways
• Payment gateways can be challenging to test because they involve multiple dependencies, compliance risks, and complexities of modern payment methods
• The different methods of payment gateway testing include functional, integration, security, performance, localization, and failure recovery testing
• To efficiently test payment gateways, set up a sandbox environment, outline your test scenarios for payment gateway, execute tests across different devices and network variations, verify system responses, and analyse results

What Is Payment Gateway Testing?

Payment gateway testing is the process of evaluating whether a payment gateway can process transactions securely and correctly between the merchant application and the bank or financial institution.

You test the end-to-end payment flow, integrations, security controls, and user experience, and ensure authorisation, encryption, refund, and settlement processes work as expected from payment initiation to completion.

Some of the major payment gateways available in the market today are Razorpay, Paytm, Worldpay, Stripe, and PayPal.

Also Read: Omnichannel Testing: Complete Guide to QA Testing Across Web, Mobile & POS

How Payment Gateways Work

Here’s the typical flow of how transactions happen via payment gateways:

• Your customer initiates a purchase and proceeds to the checkout page
• Then they select a preferred payment method, such as a card, digital wallet, UPI, or net banking service
• Your payment gateway receives the transaction request and securely collects the payment information (card name, number, CVV) needed for processing
• The acquiring bank and payment network route the request to your customer’s issuing bank for verification
• The issuing bank then processes the transaction and sends an approval or decline response back through the payment network
• Your payment gateway communicates the final transaction status to the merchant’s app, after which the transaction moves to settlement

Also Read: Mobile Banking Application Testing: Types, Process, Challenges & Best Practices

Types of Payment Gateways

1. Hosted Payment Gateways

This type of payment gateway basically redirects your customers from the merchant’s website or app to a secure payment page that’s managed by the payment service provider.

Customers enter their payment details on the provider’s platform to complete the transaction, and they are then redirected back to the merchant’s site.

2. Self-hosted Payment Gateways

Self-hosted payment gateways allow your customers to enter their payment details directly on the merchant’s site rather than redirecting them to a third-party payment page.

The site transmits this payment information to the gateway for authorisation and processing. Here, the merchant mainly has the responsibility for security and PCI DSS compliance.

3. API-Integrated Payment Gateways

This gateway allows businesses to integrate payment processing directly into their websites or apps via APIs. The benefit of API hosted payment gateways is that your customers can complete the entire checkout process without leaving the merchant’s platform.

The businesses have greater security obligations here because payment information is collected and processed through their systems.

4. Local Bank Integration Gateways

A local bank integration gateway connects a business’s app to the bank’s payment system. It actually redirects your customers to their bank’s online banking portal for authorising and completing the transaction.

And after the payment is processed, the customer is again returned to the business’s or merchant’s site, where they’re shown the transaction status.

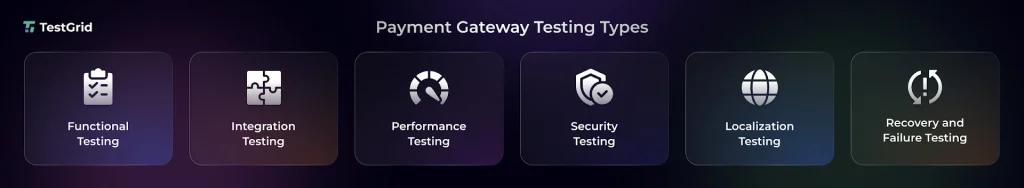

Types of Payment Gateway Testing

1. Functional Testing

Functional testing helps you verify that all the workflows from payment initiation to transaction completion work correctly.

This can include testing the core functions like payment authorisation, chargebacks, cancellation, refunds, transaction status, and error handling.

You also check scenarios like failed payments, declined cards, and confirmation notifications across all supported payment methods.

Also Read: 10 Best Functional Testing Tools for 2026

2. Integration Testing

It’s important to ensure that your payment gateway communicates smoothly, without any interruptions, with all connected systems, including the checkout interface, backend services, banks, and third-party payment providers.

Integration testing allows you to test it and confirm that data flows correctly between the user interface, the server, and the payment processor.

3. Performance Testing

Performance testing enables you to measure the response times, transaction processing speed, throughput, scalability, and system stability under peak transaction volume.

You can assess if your payment gateway can handle concurrent requests without delays and whether it can recover easily from service disruptions.

4. Security Testing

Security testing helps you ensure that the payment gateway protects sensitive customer information and payment data throughout the transaction lifecycle.

Here, you evaluate encryption mechanisms, tokenisation, authentication controls, secure API communication, data storage practices, and compliance with standards like PCI DSS.

You can also run penetration tests to make sure the gateway is secure against unauthorised access, data leakage, and other security threats.

5. Localization Testing

Since payment gateways facilitate transactions across countries, regions, and user segments, you need to check if they deliver consistent payment experiences across geographies.

You need to test different payment methods, local currencies, taxes, language translations, date and number formats, and regional regulations. This will help you ensure your customers can complete transactions with their preferred payment options seamlessly.

6. Recovery and Failure Testing

Your payment gateway may encounter unexpected interruptions, errors, and transaction failures.

In recovery and failure testing, you simulate scenarios such as network outages, payment timeouts, server crashes, duplicate requests, and incomplete payments to see if customers receive correct status updates, error messages, and are redirected to retry flows.

Also Read: Interruption Testing: Simulate the Chaos Before Your Mobile Users

Payment Gateway Testing Process

To understand how to test payment gateways in real-world environments, let’s have a look at the key stages involved in the process.

Set Up a Secure Test Environment

The first thing you need to do is configure a sandbox or test environment which resembles the production payment setup but without involving real monetary transactions.

You have to enable the test mode, generate test API credentials, configure test endpoints, and connect the app to the gateway’s sandbox environment.

Here, you also set up simulated test cards, test UPI IDs, mock bank accounts, and wallet credentials to assess payment flows.

Define Payment Flows and Test Scenarios

After your test environment is ready, you have to design the test scenarios and test cases for the payment gateway.

This should ideally include scenarios like checkout initiation, payment method selection, cardholder authentication (OTP or 3D Secure verification), payment authorisation, transaction processing, status confirmation, order creation, notifications, refunds, and reconciliation.

Execute Test Transactions Across Devices

You have to execute your tests across all the different combinations of devices, operating systems, and networks that your users normally rely on.

You should cover desktops, smartphones, tablets, Android, iOS, major browsers (Chrome, Firefox, Safari, Edge), and network variations (3G, 4G, 5G, WiFi, offline).

This step will help you detect UI issues, compatibility problems, and rendering inconsistencies.

Verify Payment Status and System Responses

After testing, you need to ensure that all records, including successful, pending, cancelled, or refined transactions, are accurately synced between the payment gateway, the app, backend systems, and the merchant dashboard.

You also have to confirm that the approved transactions are correctly reflected in the merchant accounts and financial records.

Analyse Results and Prepare for Production

Thoroughly analyse your test results to identify any integration issues, performance slowdowns, and security gaps. Fix these issues and retest to ensure all critical payment flows can function reliably.

Before you move to production, you have to verify the API configurations, webhook endpoints, payment method settings, and monitoring mechanisms so that the gateway can process real transactions securely in the live environment.

Learn More: Testing in Production: Methods, Risks, Benefits, and Best Practices

Payment Gateway Test Case Examples

Here’s one of the sample payment gateway test cases, which shows how you can successfully test the payment processing workflow.

Test case ID	PG_TC_001
Test case title	Verify successful payment processing using a valid credit/debit card
Preconditions	Payment gateway is integrated with the applicationSandbox/test environment is configured. Valid test card credentials are available. Test product is available for purchase. Customer account is active
Test steps	Add a product to the cart and proceed to checkout. Select Credit/Debit Card as the payment method. Enter valid test card details. Submit the payment request. Complete the authentication process. Wait for the transaction response
Expected results	Transaction is approved successfully. Payment status is updated correctly. Unique transaction ID is generated. Order status changes to Paid Confirmation notification is displayed to the customer. Transaction is recorded in the gateway and merchant systems

Importance of Thorough Payment Gateway Testing

1. Multiple Dependencies in Payment Ecosystems

There’s a network of interconnected systems, including payment gateways, processors, card networks, issuing banks, acquiring banks, and fraud detection services, behind every payment which your customer makes.

So, a failure or delay at any one of these dependencies can affect the entire transaction flow. This is why testing is important to ensure seamless coordination across these interdependent entities.

2. Impact of Payment Failures on Revenue and Trust

Payment issues affect your business. Failed charges, incorrect transaction outcomes, delayed confirmations, or unexpected payment errors can lead to abandoned purchases and lost sales.

Testing helps you verify transaction accuracy and gives you the confidence that customers’ information and money are handled securely.

3. High Security and Compliance Risks

Since payment gateways work with financial information and operate under strict regulatory requirements (PCI DSS, GDPR, PSD2), weak encryption, improper access controls, or non-compliant data handling can result in fraud, data breaches, legal penalties, and reputational damage.

Testing with positive and negative test cases for payment gateways (e.g., invalid inputs, unauthorised access attempts, and malformed requests) allows you to find security vulnerabilities and reduce regulatory risks.

4. Complexity of Modern Payment Methods

Your payment gateways should support transactions through credit and debit cards, digital wallets (Apple Pay, Amazon Pay), UPI (Paytm, Google Pay), BNPL services, and real-time bank transfers.

And since each of these options has unique workflows, authentication requirements, and settlement processes, testing is critical for validating these variations.

Streamlining Payment Gateway Testing with TestGrid

Payment journeys now span mobile apps, web browsers, QR flows, redirects, biometric authentication, MFA, regional behavior, network conditions, and high-traffic events.

Testing these journeys manually across devices, operating systems, browsers, and locations can slow your release cycles and leave critical gaps.

TestGrid helps you validate payment and BFSI testing user journeys across a real device cloud, cross-browser testing, and controlled test environments. You can test QR-based payment flows, login and authentication journeys, transaction paths, device behavior, geolocation-based scenarios, and app performance under high demand.

TestGrid offers real device cloud, private dedicated hosting, hybrid, and on-premise deployment options depending on your infrastructure, security, and compliance requirements. It supports web and mobile testing across real Android and iOS devices, browsers, and automation frameworks such as Appium, Selenium, and Cypress.

Here’s how TestGrid helps you test payment experiences with better coverage:

• Test payment journeys on real Android and iOS devices to validate usability, responsiveness, biometric authentication, MFA, and device-specific behavior.

• Verify QR-based payment processes and transaction flows across real user journeys, including onboarding, authentication, and payment confirmation scenarios.

• Run tests across real browsers such as Chrome, Safari, Firefox, Edge, Opera, and Samsung Internet, depending on your test environment and browser support requirements.

• Simulate high-traffic conditions to check responsiveness, stability, and performance during peak transaction periods.

• Test location-specific behavior for regional payment flows, currencies, language, and market-specific app behavior where applicable.

• Use codeless automation, record-and-playback, AI-driven test authoring, and AutoHeal to reduce test creation and maintenance effort.

• Connect test execution with CI/CD workflows using integrations such as Jenkins, GitHub Actions, GitLab, Azure DevOps, and related pipelines. You can also report defects from TestGrid to Jira or Slack.

TestGrid gives your QA and engineering teams a practical way to validate payment journeys across real devices, browsers, automation workflows, and enterprise-ready test environments. Book a demo to see how TestGrid can support your payment testing requirements.
